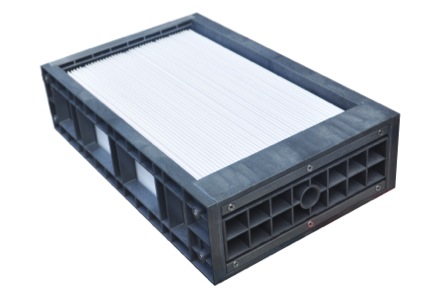

CERAMIC MODULE SPECIFICATIONS
Model	CM3604	CM4605
Number of plates	36 pieces	46 pieces
Plates material	Alumina oxide	Alumina oxide
Flow rate (city water)	1.5 m³/hr	2 m³/hr
Total surface area	4 sqm	5 sqm
Dimensions (mm)	560 x 360 x 145	560 x 360 x 145
Weight	17 kg	20 kg
Operating pressure	< 1.0 bar	< 1.0 bar
Operating temperature	80 °C max	80 °C max
pH Range	2 - 12	2 - 12
Product Turbidity	≤ 0.1 NTU	≤ 0.1 NTU
* Specifications are subject to changes
Click to download brochure

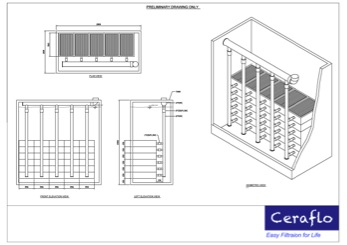

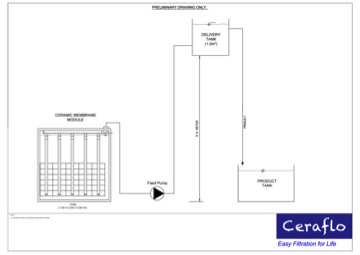

Ceramic modules stackable in submerged tank	General configuration of ceramic membrane system
* Above drawings are one of the many possible designs system integrators are able to configure for their applicatons
